• Reinraumleuchten

Cleanroom luminaires - directly from the manufacturer

clean-tek manufactures different cleanroom luminaires that are adapted to the requirements of the respective ceiling system. Through our own production, we offer you as a system supplier a modular system of modules and components with which we develop optimal cleanroom solutions. Our clean-tek luminaires meet the special cleanroom requirements for illuminance, sealing of the luminaires and cleanability. They are equipped with professional LED technology. As recessed luminaires, they are compatible with all clean-tek ceiling systems and meet the highest hygienic design principles. Our cleanroom luminaires can also be easily integrated into ceilings from other manufacturers.

Our cleanroom luminaires at a glance:

clean-tek_Band Grid Luminaire
BRL BRL Band Grid Luminaire

For installation in the ceil-tek ceiling system
The recessed luminaire with highly efficient LED modules is designed for flush mounting in the ceil-tek ceiling system and is especially suitable for clean rooms with increased hygienic requirements. Use in damp rooms is harmless in accordance with IP 65 specifications.

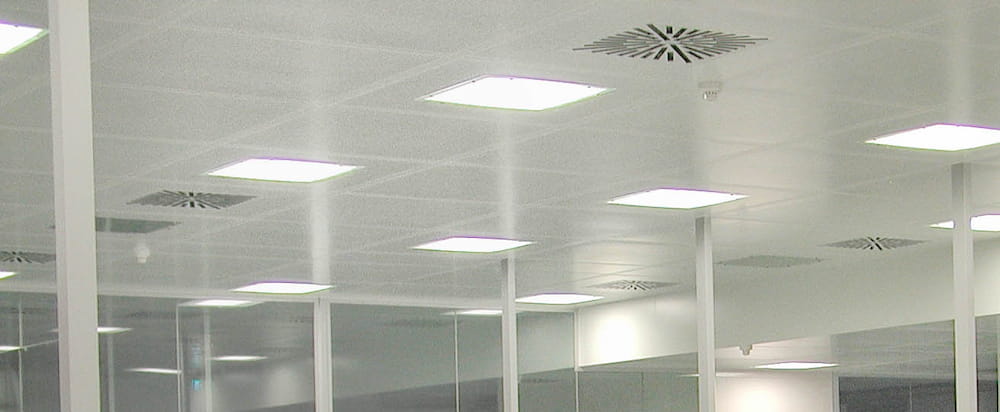

T-Grid luminaire TGL
T-Grid luminaire TGL

For installation in the T-Grid ceiling system
The LED recessed luminaire is designed for flush mounting in the T-Grid ceiling system and is especially suitable for clean rooms with increased hygienic requirements. Use in damp rooms is harmless in accordance with IP 65 specifications.

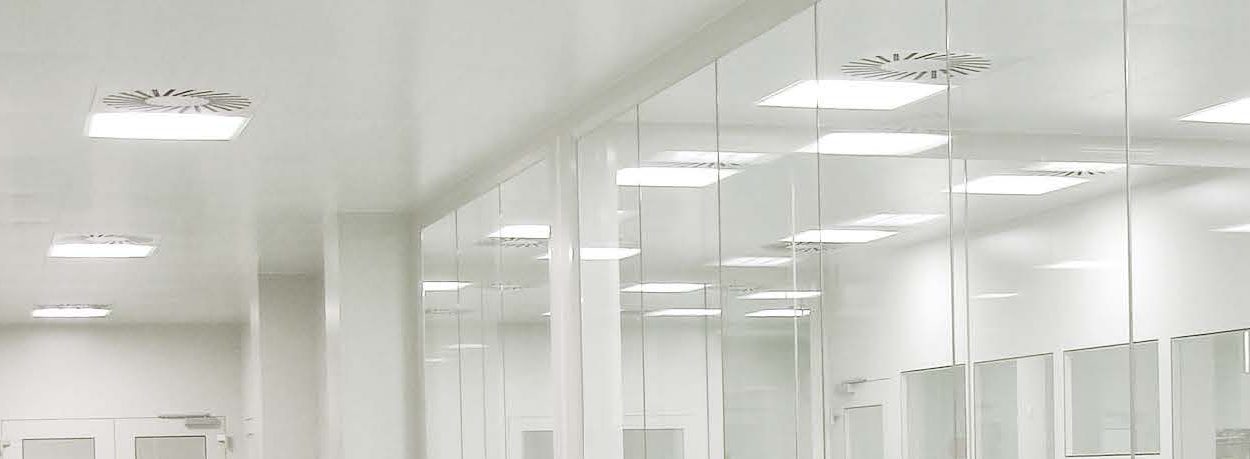

Recessed luminaire EBL
Recessed luminaire EBL

For installation in the clean-ceil ceiling system
The LED recessed luminaire is designed for flush mounting in the ceil-tek ceiling system and is especially suitable for clean rooms with increased hygienic requirements. Use in damp rooms is harmless in accordance with IP 65 specifications.

BRL - Band Grid Luminaire


Features and Benefits:

  • Air- and particle-tight LED cleanroom luminaire
  • For flush mounting in the ceil-tek cleanroom ceiling system
  • Simply hooks in between the two ceiling beams
  • No cut-out in the ceiling panel required
  • Very good energy efficiency
  • Version with 60 or 100 W driver
  • Optional control via DALI bus
  • No cancellation of cleanroom status during maintenance, as the glazed sheet metal remains in the cleanroom ceiling when the luminaire is opened.

Options:

  • Dimmable lighting through use of a DALI bus system
  • Switching unit for external emergency power
  • Change of light colour
  • Yellow light
TGL - T-Grid Luminaire


Features and Benefits

  • Factory-made, air- and particle-tight LED clean-room luminaire.
  • For flush mounting in the T-Grid cleanroom ceiling system
  • Is integrated into the ceiling grid from above between 2 ceiling panels
  • No cut-out in the ceiling panel required
  • Very good energy efficiency
  • Version with 60 or 100 W driver
  • Optional control via DALI bus
  • Can be opened without tools
  • No cancellation of clean-room status during maintenance, as the glazed sheet metal remains in the clean-room ceiling when the luminaire is opened.

Options:

  • Dimmable lighting by using a DALI bus system
  • Switching unit for external emergency power
  • Yellow light
EBL - Recessed luminaire


Features and Benefits:

  • Factory-made, air- and particle-tight LED clean-room luminaire
  • For flush mounting in common cleanroom ceiling systems
  • Is hooked into the ceiling grid from above
  • Very good energy efficiency
  • Version with 60 or 100 W driver
  • Optional control via DALI bus
  • No cancellation of cleanroom status during maintenance as the luminaire is sealed at the top.

Options:

  • Dimmable lighting by using a DALI bus system
  • Switching unit for external emergency power
  • Change of light colour
  • Yellow light

If you have any questions about the design or technology, please contact us.




Note on our cleanroom luminaires


In accordance with DIN EN 62471 "Photobiological safety of lamps and lamp systems", all clean-tek cleanroom luminaires have been classified in the "Free Group".

This means for you, the user: No risk!

There is no risk of damage to the eye, not even when looking permanently in the direction of the light source (unlimited exposure time).
